Subproject C5

Variable processes and application of methods and technologies for uncertainty control in load-carrying systems

The subproject C5 emphasizes on two research issues.

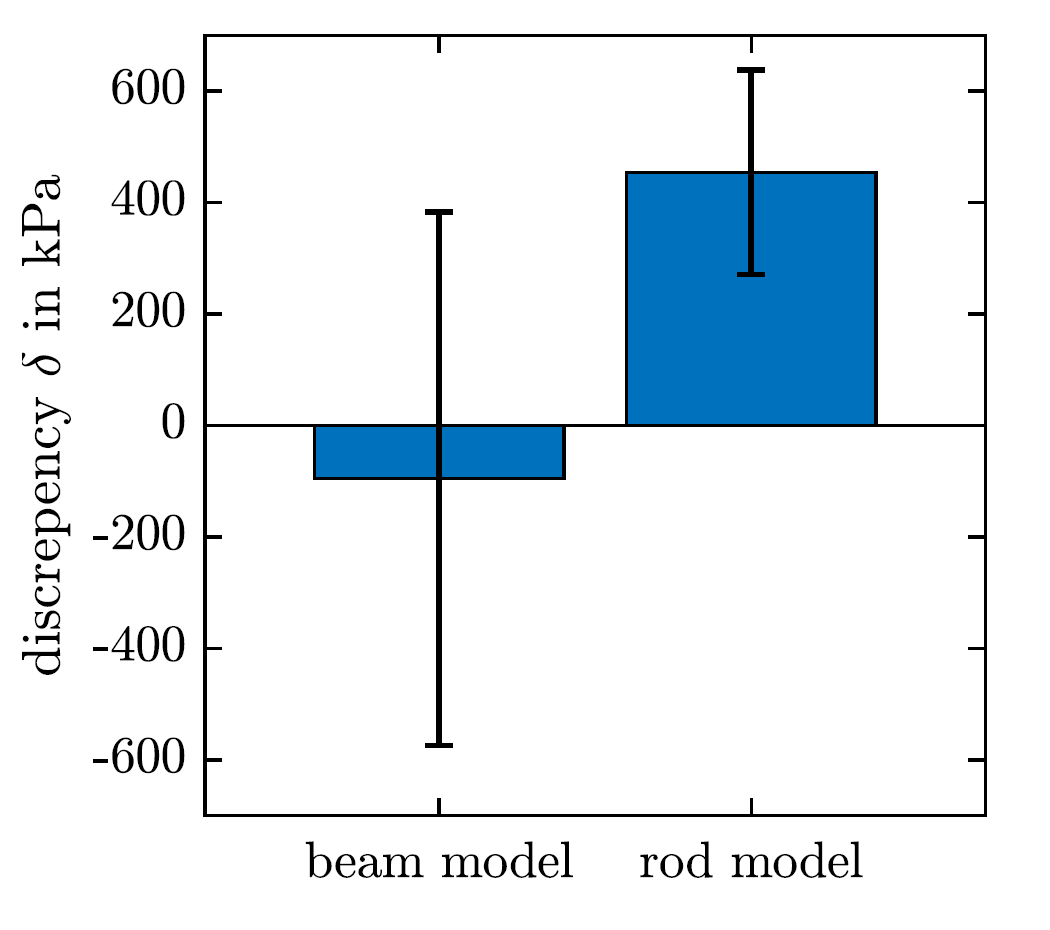

The first issue is to evaluate, which functional relations of different mathematical models based on their complexity and scope predict the dynamic behavior of the SFB-Demonstrator and its modular components on the one hand and the resulting existence of model uncertainty including the quantified uncertainty with confidence limits on the other hand. The second issue is to find suitable passive, semi-active and active measures that contribute towards the control of quantified as well as unknown data and model uncertainties, which prevail during the production and the usage phases of the SFB-Demonstrator that also represents the different types of load-carrying systems.

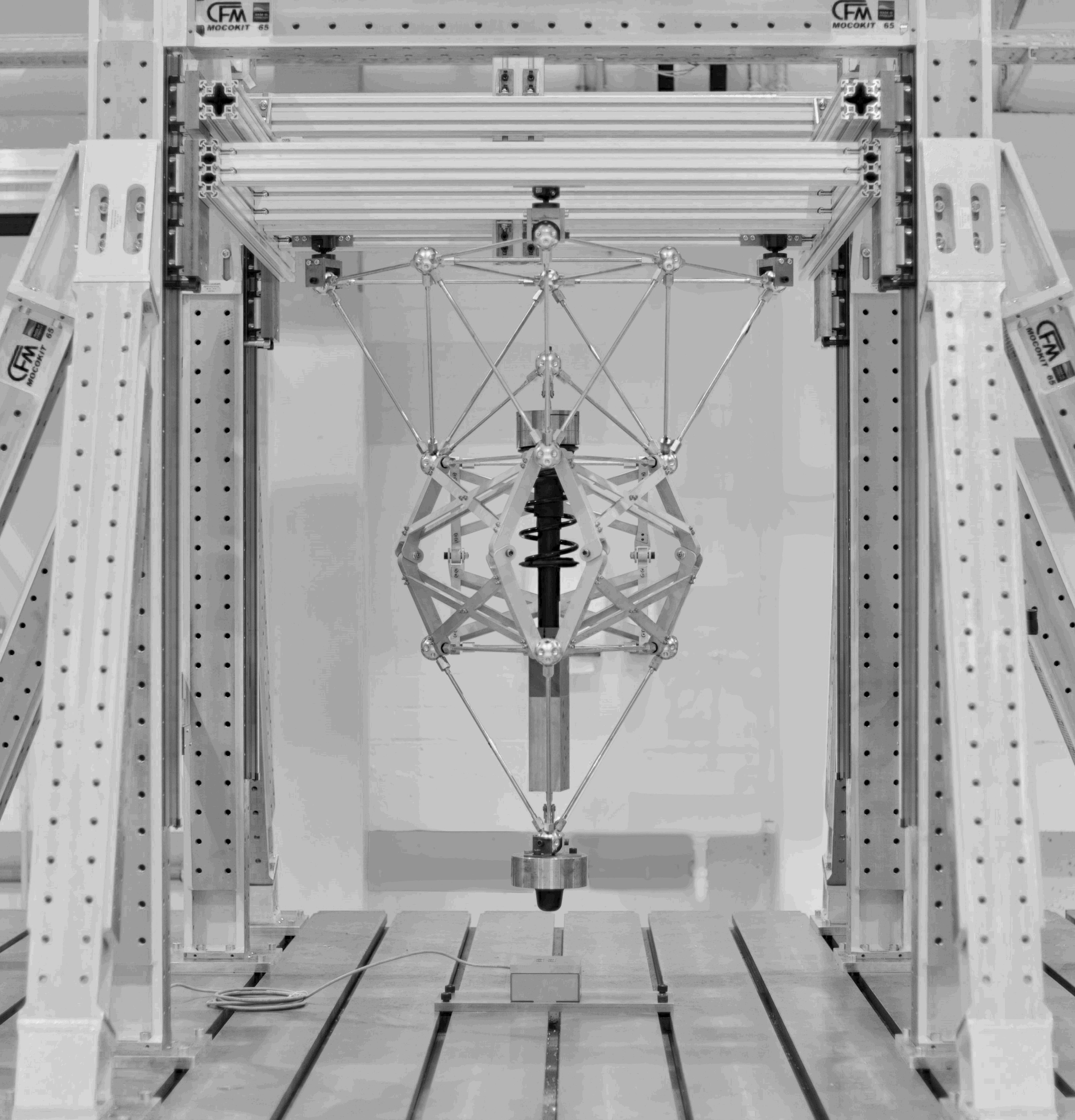

Prediction of the dynamic behavior of the modular active spring-damper system MAFDS (German acronym) by means of axiomatic and empiric mathematical models as well as performing experimental tests on MAFDS

Video: Drop test of modular active spring-damper system MAFDS

[1] Platz, Roland; Ondoua, Serge; Enss, Georg C.; Melz, Tobias (2014): Approach to Evaluate Uncertainty in Passive and Active Vibration Reduction. In: H. Sezer Atamturktur, Babak Moaveni, Costas Papadimitriou und Tyler Schoenherr (Hg.): Model Validation and Uncertainty Quantification, Volume 3. Proceedings of the 32nd IMAC, a Conference and Exposition on Structural Dynamics, 2014. [held in Orlando, Florida, February 3-6, 2014]. Cham: Springer International Publishing (Conference Proceedings of the Society for Experimental Mechanics Series), S. 345–352.

[2] Platz, Roland; Enss, Georg C. (2015): Comparison of Uncertainty in Passive and Active Vibration Isolation. In: Proceedings of the 33rd IMAC, a Conference and Éxposition on Structural Dynamics. SEM Society for Experimental Mechanics: Springer International Publishing, S. 15–25.

[3] Melzer, Christiane M.; Krech, Martin; Kristl, Lisa; Freund, Tilmann; Kuttich, Anja; Zocholl, Maximilian et al. (2015): Methodical Approaches to Describe and Evaluate Uncertainty in the Transmission Behavior of a Sensory Rod. In: Applied Mechanics and Materials, Trans Tech Publications 807, S. 205–217.

[4] Melzer, Christiane M.; Platz, Roland; Melz, Tobias (2015): Comparison of Methodical Approaches to Describe and Evaluate Uncertainty in the Load-Bearing Capacity of a Truss Structure. In: Y. Tsompanakis, J. Kruis und B.H.V. Topping (Hg.): Proceedings of the Fourth International Conference on Soft Computing Technology in Civil, Structural and Environmental Engineering. Prague, Czech Republic, 1-4 September: Civil-Comp Ltd, S. 20.

[5] Melzer, Christiane M.; Platz, Roland; Melz, Tobias (2015): Consistent Comparison of Methodical Approaches to Describe and Evaluate Uncertainty in the Load-Carrying Capacity of a Truss Structure. In: Proceedings of International Conference on Structural Engineering Dynamics ICEDyn. Lagos, Portugal, June 22-24. Instituto Superior Técnico, Technical University of Lisbon, S. 8.

[6] Platz, Roland; Götz, Benedict; Melz, Tobias (2016): Approach to evaluate and to compare basic structural design concepts of landing gears in early stage of development under uncertainty. In: Proceedings of the 34th IMAC, a Conference of the Society for Experimental Mechanics Series 2016, Bd. 3. SEM Society for Experimental Mechanics, S. 167–175.

[7] Platz, Roland; Melzer, Christiane M. (2016): Uncertainty quantification for decision making in early design phase for passive and active vibration isolation. In: Proceedings of ISMA 2016 including USD 2016 International Conference on Uncertainty in Structural Dynamics. ISMA Advance Conference Programme, S. 4501–4513.
  Name Contact
Subproject Managers
Prof. Dr.-Ing. Tobias Melz
+49 6151 16-23657
Scientific Staff
Robert Feldmann M.Sc.
+49 6151 705-610
